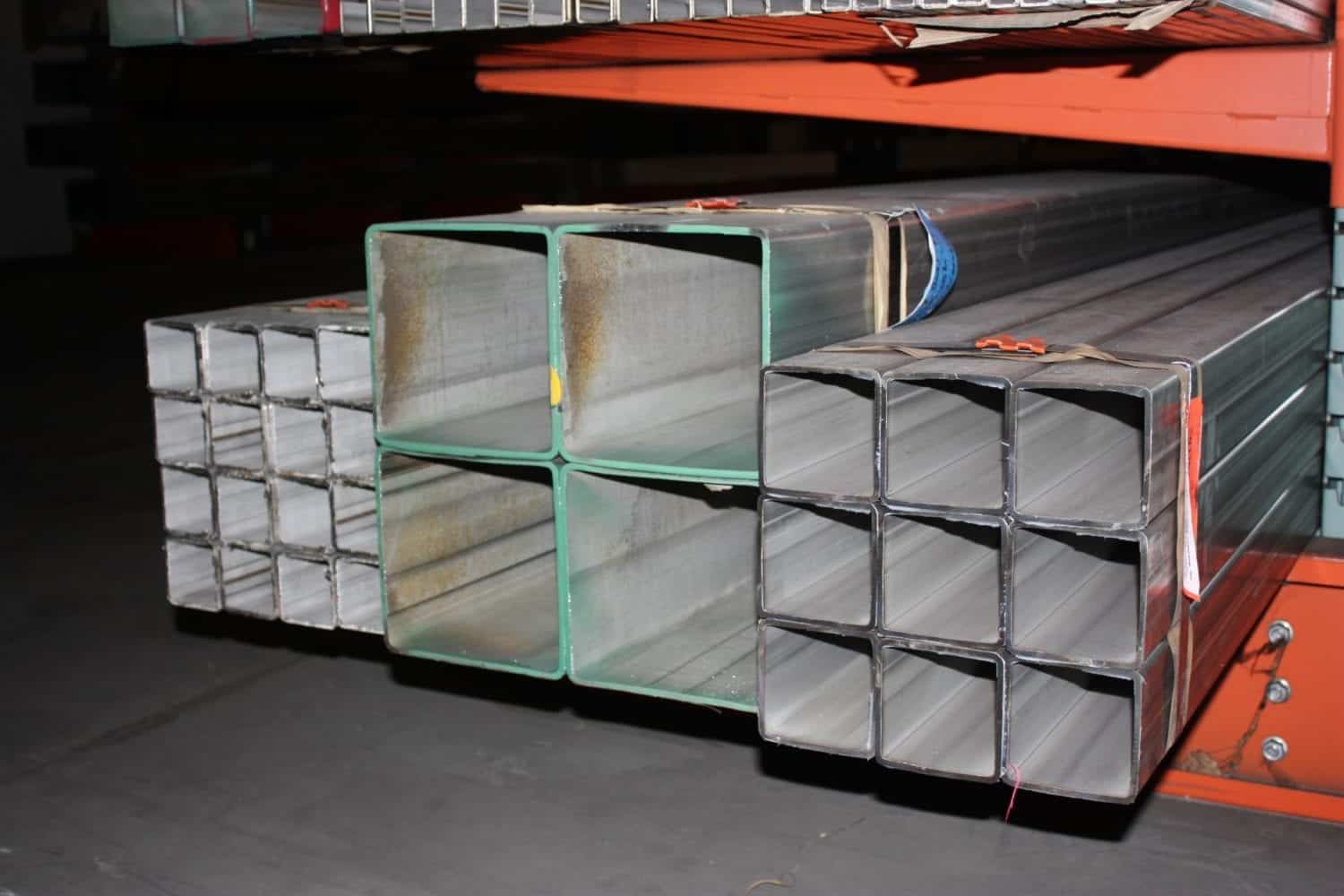

Square Tube Specifications
Stainless Steel Square Bars
When you purchase square bars from Stainless Shapes, we promise that all of our metals are tested and produced to the highest standards. We have over 25 years of experience in stainless steel and always deliver the highest quality for our customers. See our square tube specifications below.
Our Square Bar Tolerances
| Size Inches |
ODB Over/ Under, In. |
WallCD Over/ Under % |
Cut Length Inches |
OvalityB Double Outside Diameter Tolerlance When Wall Is: |
| Under 1/2 | 0.005 | 15 | +1/8 –0 | less than 0.015 |
| 1/2 to 1-1/2 excl. | 0.005 | 10 | +1/8 –0 | less than 0.065 |
| 1-1/2 to 3-1/2 excl. | 0.010 | 10 | +3/16 –0 | less than 0.095 |
| 3-1/2 to 5-1/2 excl. | 0.015 | 10 | +3/16 –0 | less than 0.150 |
| 5-1/2 to 8 excl. | 0.030 | 10 | +3/16 –0 | less than 0.240 |
| 8 to 8-5/8 excl. | 0.045 | 10 | +3/16 –0 | less than 0.300 |
| Optimum Pipe Size (Inches) |
OD | Wall | Cut Length |
|
| Over | Under | |||
| 1/8 to 1-1/2 | 1/64 | 1/32 | +4.5% to -12.5% |
+1/4 -0 |
| Over 1-1/2 to 4 | 1/32 | 1/32 | ||
| Over 4 to 8 | 1/16 | 1/32 | ||
| Over 8 to 18 | 3/32 | 1/32 | ||
