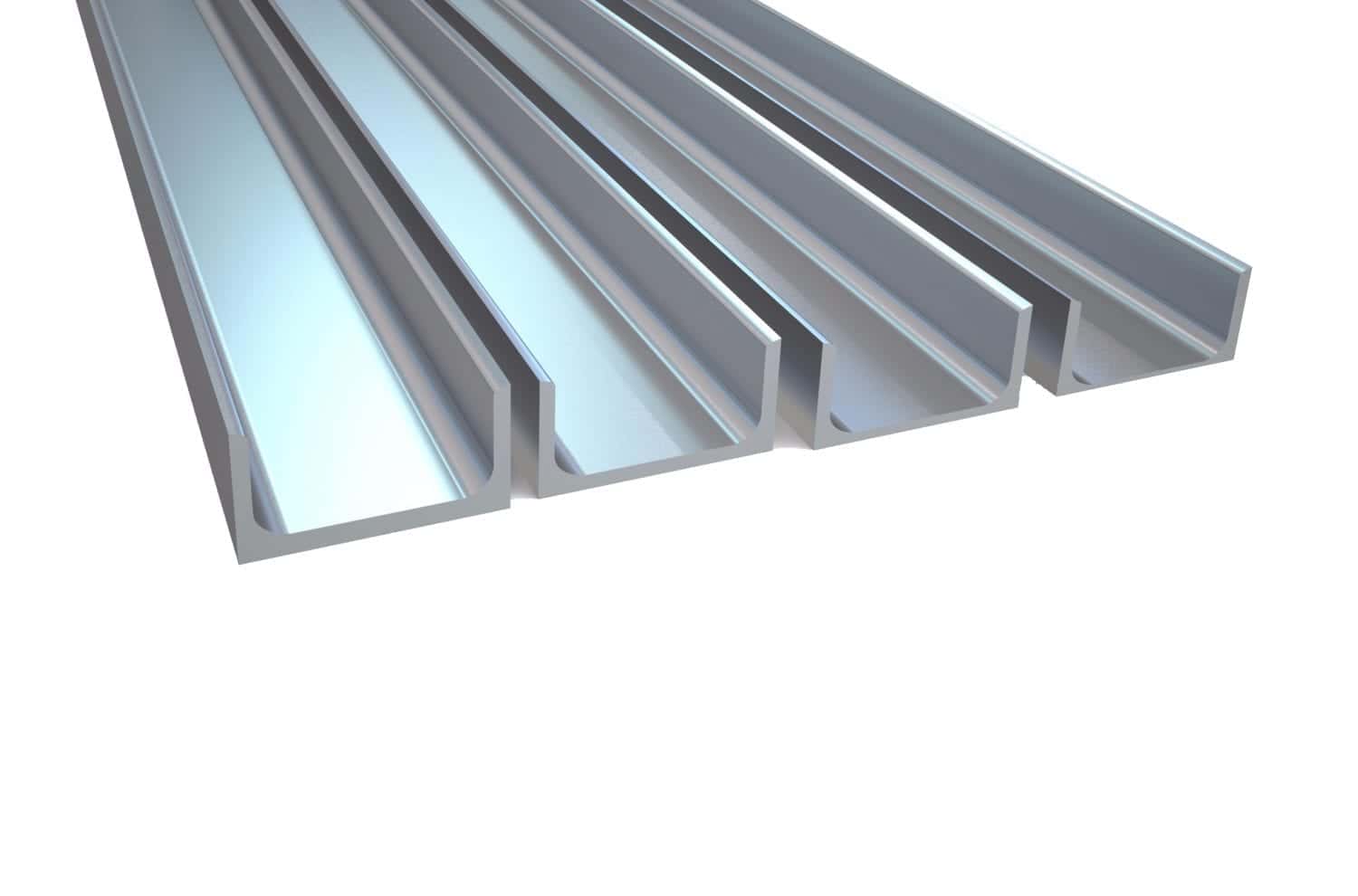

Stainless Steel U Channels

U-channel steel is commonly referred to as a structural channel or C-channel, depending on the flange geometry. When the flanges are parallel (equal inner face), it is called a U-channel or parallel-flange channel. In stainless steel distribution, it is typically called a 'U-channel' to distinguish it from the tapered-flange standard channel. It may also be called a 'hat section' in certain configurations.

U-channel steel derives its strength from its moment of inertia relative to its neutral axis. A standard stainless 304 U-channel has a yield strength of approximately 30 ksi and tensile strength of about 75 ksi in the annealed condition. Larger channel sizes with thicker webs and flanges carry substantially more load. For structural applications, a licensed engineer should verify load capacity.

Stainless steel U-channels come in standard parallel-flange styles, in light-gauge formed profiles, and in structural sizes. They can be produced in equal-leg or unequal-leg configurations. Stainless Shapes supplies U-channels in both 304 and 316 stainless, in standard sizes and available in custom configurations upon request.

Standard stainless steel U-channels are available in widths from approximately 3/4" to 6" or larger, with varying leg heights and wall thicknesses. Common sizes might include 1" × 1" × 1/8" or 2" × 1" × 1/8". Exact availability depends on current stock. Contact Stainless Shapes for a full list of stocked sizes.

Metal U-channel can be cut using an angle grinder with a stainless-rated cutoff wheel, a cold saw, or a horizontal band saw. For precision cuts, a cold saw provides the cleanest finish. Use cutting fluids to prevent galling and work hardening. Avoid carbon steel tools that can contaminate the stainless surface; use stainless-specific abrasives.

For most indoor and general applications, 304 stainless steel is the cost-effective choice. For marine, coastal, food-processing, or chemical environments where chloride exposure is a factor, 316 stainless steel's added molybdenum provides significantly better corrosion resistance and is the correct specification. Stainless Shapes stocks both grades.

The key difference is flange geometry. A U-channel (parallel-flange channel) has inner flange faces that are perpendicular to the web, creating a uniform slot. A C-channel (American Standard) has a slight taper on the inner flanges. U-channels are preferred when flat, parallel contact is required—such as for glass glazing or panel edge retention—while C-channels are more common in general structural framing.

Yes, stainless steel U-channels are readily weldable using TIG or MIG processes. Use ER308L filler for 304 and ER316L for 316. Maintain proper heat control to minimize distortion of the light sections, and passivate the weld area afterward to restore corrosion resistance.

Without testing equipment, you cannot reliably distinguish 304 from 316 by visual inspection alone. An XRF analyzer provides a definitive identification on-site. If you purchased from Stainless Shapes, a certified mill test report confirms the exact grade. A magnet test is not conclusive for distinguishing 304 from 316, as both are austenitic and similarly non-magnetic.
